Cortadora Láser



-The Third Generation Aviation Aluminum Gantry

-3rd Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many  advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

-Without manual operation, it can focus automatically

*Without manual focusing

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

*Bigger adjustment range

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

*Long service life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Independent Control Cabinet


All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.

*Automatic Thermostat

The control cabinet is equipped with air conditioner for automatic constant temperature. This can prevent excessive temperature damage to components in summer.

-Stainless Steel Protection Design

The operating area adopts a 304 stainless steel design to prevent high temperature cutting sparks from damaging the machine’s surface .

-IPAD Designing Screen

Ipad design screen, has a vertical screen display, different from the traditional horizontal screen display with good response speed, higher contrast, wider view, low power consumption as well as high resolution. In addition, it possesses high brightness levels and lower reflectivity as well as solid glass panel sturdiness and durability.

-Transmission and Precision

G.WEIKE fiber laser cutting machine is equipped with Japanese Yaskawa motor, French Motoreducer reducer and Taiwan APEX rack. The positioning accuracy of the machine tool can be 0.02mm.

-Technical Parameters

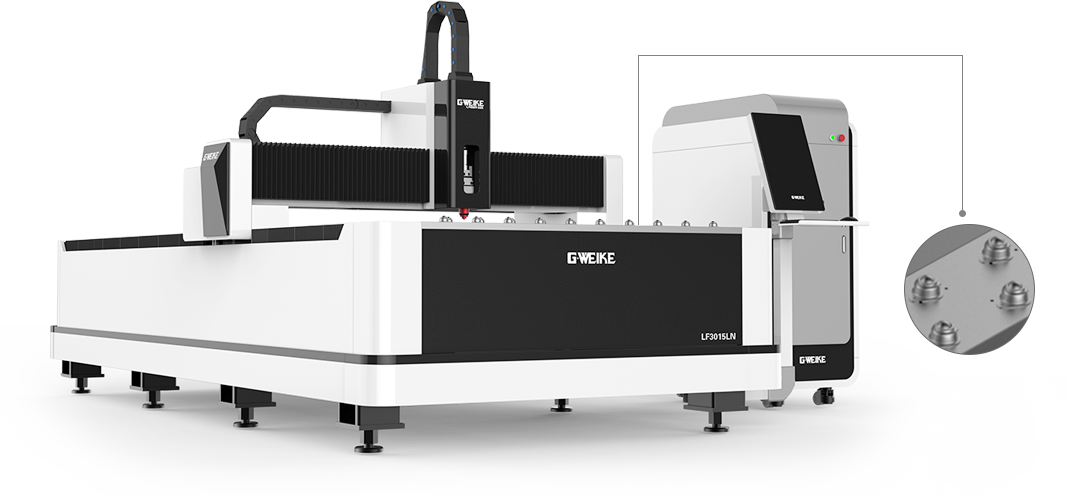

Machine model LF3015LN
Laser power 500W 750W 1000W 2000W 3000W(Optional)
Dimensions 4440* 2500* 1860mm
Working area 3000mm x 1500mm 4500mm*1500mm
Repeat positioning accuracy ±0.02mm
Maximum speed 80m/min
Max. acceleration 1.0G
Specified voltage and frequency 380V 50Hz/60Hz/60A

-Industry Applications

LF3015LN fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people’s daily life. Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

G-Geike - FACSA

DAVI Gravadora laser

Solicita tu cotización del equipo con la potencia que requieras

Grabadora láser
10W , 20W 30W 50W 100W

Especificaciones Potencia media de 10W a 100W dependiendo el equipo

Calidad de punto M2 <1.5
Rango de potencia promedio 10-100w
Frecuencia de pulso 0-100khz
Parámetros típicos Potencia efectiva máxima 250w
Rango de energía de pulso 5-200mj
El pulso sube y baja el tiempo <90
Estabilidad de potencia <± 10%
El haz apunta a la estabilidad 200μrad
Diámetros del haz (1 / e2) X: 1.6 ± 0.3mm Y: 2.3 ±
Ángulo de divergencia del haz <11.0 mrad
Rango ajustable del ciclo de trabajo 0-60%
longitud de onda 10.2-10.7μm
Grado de polarización> 100: 1 (polarización lineal)
Parámetros de fuente de alimentación Tensión de entrada CC 48v ± 1%
Picos de corriente 50A, pico 100A
Para potencia mayor a 30W:
50W a 100W
Parámetros de refrigeración de agua Velocidad de flujo de agua de refrigeración 5.7L / min
Rango de temperatura del agua de refrigeración 10 ℃ -35 ℃
Dureza del agua (cacos) <250 mg / L
Presión de agua 205-520kpa
Parámetros ambientales Temperatura ambiente 5 ℃ -40 ℃
Humedad relativa <95% no consistente
altitud <2000m
peso Cabezal láser 15.9kg
Peso bruto del láser 90kg
Tamaño del embalaje 1300 * 450 * 400mm
